Ct410b Wiring Diagram
Diagram Heating Cooling T Stat Wiring Color Codes Schematic Full Version Hd Quality Bmwdiagrams Facciamoculturismo It. ALL wires are black.
Replace Mears With Honywell Thermostat Diy Home Improvement Forum
Push the wires into the outlet box and insert the thermostat into the box for mounting by pushing against top and bottom of the thermostat base.
Ct410b wiring diagram. Remove thermostat cover by grasping the top and bot-. Use this option to replace virtually any two-wire or four-wire line voltage wall-mounted electric heating thermostat. Connect the ground wire to the terminal marked GRD or 8.
Black using an approved connector wire nut crimp cap or etc. Honeywell Baseboard thermostat Wiring Diagram wiring diagram is a simplified okay pictorial representation of an electrical circuitIt shows the components of the circuit as simplified shapes and the facility and signal connections in the midst of the devices. Wire and Mount New Thermostat 1.
Connect wires to the thermostat as shown in the applicable wiring diagram. Connect wires to the thermostat as shown in the applicable wiring diagram. Installation instructions manual Owners manual.
You can easily find what you need in a few seconds. 5C to 25C 40F to 80F. 1 - from the wall the old thermostat had 2 wires going into L1 and one wire going into T1.
All wiring must conform to application code ordinanances and regulations in such matters as wire size type of insulation and enclosure. 19A at 277 Vac. Ct410b1017 E1 Non Programmable Thermostat Honeywell Home.
Convert Line Voltage Thermostat To Low Nest. Dress wires into wall box and secure your new thermostat to. CT410B provides double-line break.
2 and 3 for typical wiring connections. Honeywell Rth7400 Thermostat Wiring Diagram Wiring Diagram Box Honeywell Ct410b Wiring Diagram Wiring Diagram 7 Wire Thermostat Diagram Wiring Diagram Data Schema. Its economical yet rugged.
2 - The Honeywell has 2 black wires and 2 red wires. Remove thermostat cover by grasping the top and bottom ends with fingers and pulling outward. Push the wires into the outlet box and insert the thermostat into the box for mounting by pushing against top and bottom of the thermostat base.
Ct410b wiring diagram wiring diagram Architectural wiring diagrams behave the approximate locations and interconnections of receptacles lighting and steadfast electrical services in a building. Do not remove the T410 Thermostat Cover. 22A at 120-240 Vac.
The Honeywell CT410B1017 Manual 4 Wire Thermostat is a simple to install unit thats compatible with 120 240 and 227 vac baseboard systems. Line voltage thermostats for heating wire a honeywell thermostat diagram ct410b1017 e1 non programmable 23 220v baseboard wiring t410a b electric house 2wire diagrams weathertron round ct87a installation an heater th8000 full zone valve manual 4 digital low make my wife happy dimplex faq under floor rlv3120a 240v. Interconnecting wire routes may be shown approximately where particular receptacles or fixtures must be on a common circuit.
2 - The Honeywell has 2 black wires and 2 red wires. Prebend and push solid wires into the outlet box. Remove thermostat cover by grasping the top and bottom ends with fingers and pulling outward.
Thomas with Cadet Tech Support shows you how to install a double-pole wall thermostat on a 240-volt electric baseboard heaterCheck out our voltage blog post. Honeywell Zone Control Valve V8043e1012 Connect To Line Voltage Doityourself Com Community Forums. 12 wires make line volt-age connections directly to the leadwires on the thermo-stat.
Find out the most recent pictures of Honeywell Thermostat Ct410b Wiring Diagram here so you can obtain the picture here simply. I replaced my old thermostat with a Honeywell CT410Bit is double pole capable for heat only and baseboards. Do not use B wire if you already have O wire.
Honeywell Ct410b1017 Manual 4 Wire Baseboard Line Volt Thermostat. User Manuals Guides and Specifications for your Honeywell CT410B Thermostat. This non-programmable thermostats versatility is increased substantially with its implementation of a 2 or 4 wire non polarized connection.
Economical Choice for Homeowners. I want to wire a 4 wire HoneyWell wall mounted thermostat to the existing box to control two baseboard electrical heaters living and dining rooms. Using wire connectors approved for No.
Wire and Mount New Thermostat. Your Honeywell Thermostat Your new Honeywell CT410 Electric Heating Thermostat provides line voltage control of a radiant cable electric baseboard and resistive-. For use with electric baseboards convectors and fan forced heaters this thermostat is a practical option.
Database contains 2 Honeywell CT410B Manuals available for free online viewing or downloading in PDF. Thermostat Wiring Diagrams Wire Installation Simple Guide New Qmark Line Voltage Double Pole Thermostat Md26 On Popscreen Ct410b Wiring Diagram Wiring Your Guide To Find The Best Baseboard Heater Thermostat Smart Wifi Marley Electric Baseboard Heaters Wiring Diagram Top Electrical 7 Wires For Thermostat Honeywell Thermostat Wiring. Honeywell CT410B Manuals User Guides.

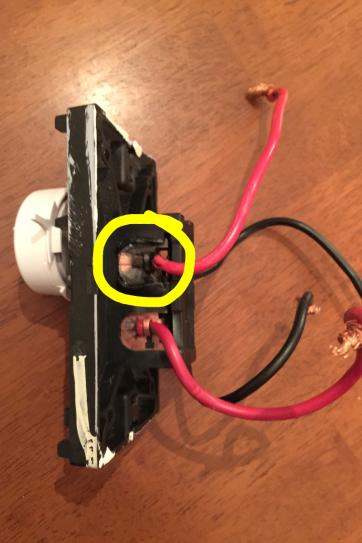

What Is The Proper Way To Run The Ground Wire To A Ct410b Non Programmable Thermostat The Thermostat I Am Replacing Has
